BlackBerry
Introduction
Here, you find a documentation about using BlackBerry with Linux. In particular, I use the BlackBerry Torch 9800.
This BlackBerry device replaces my old Storm.
If you have any questions, we can join me in using this blog.

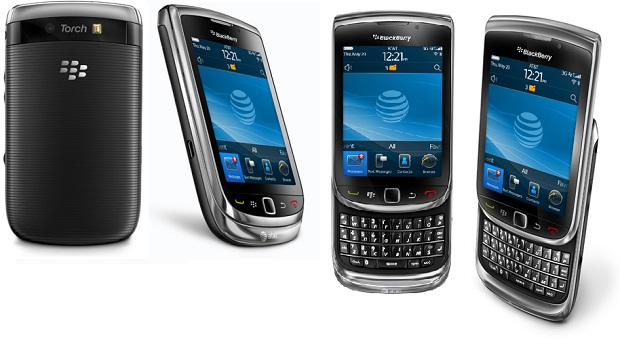

Hardware
CPU | 624 MHz Marvell PXA940 |
Memory | 512 MB Flash (flash memory) 4 GB onboard memory Expandable memory – support for microSD card |
Camera | 5 Mega Pixels with flash and autofocus |
Display | 3.25 in (8.3 cm) TFT-LCD with 360 X 480 pixel resolution and able to display 624 MHz Marvell PXA940 colors. |
Battery | DX-1 Li-ion battery (5.5 hours of GSM talk time, 6 hours of CDMA talk time, or 360 hours of standby). |
Size | 4.43″ / 111mm (Length) 2.42″ / 62mm (Width) 0.55″ / 14.6mm (Depth) 161g (Weight) |
Others | Built-in GPS, Bluetooth 2.1 + EDR, Wireless LAN, 3.5mm stereo headset capable |

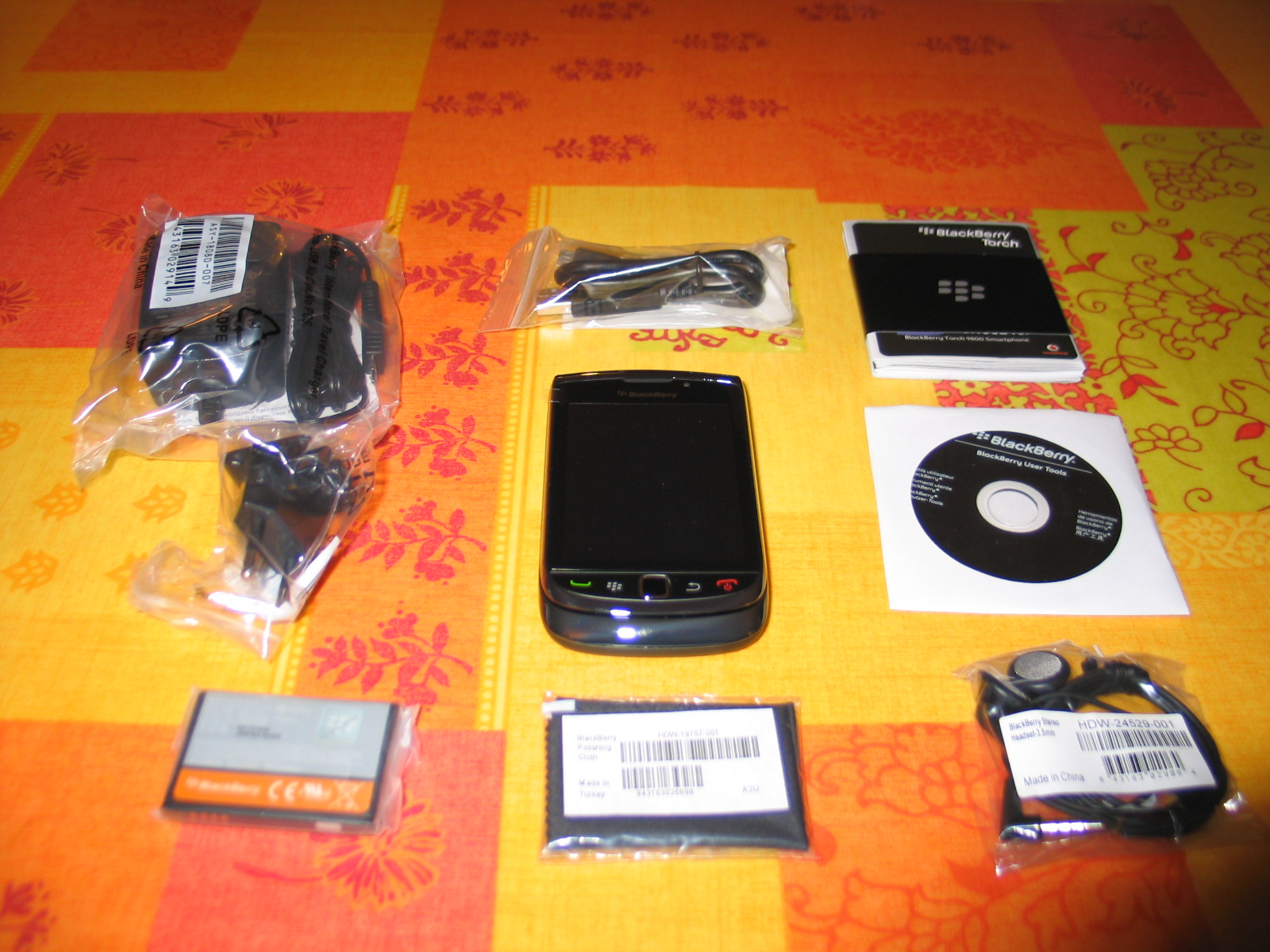

BlackBerry Package

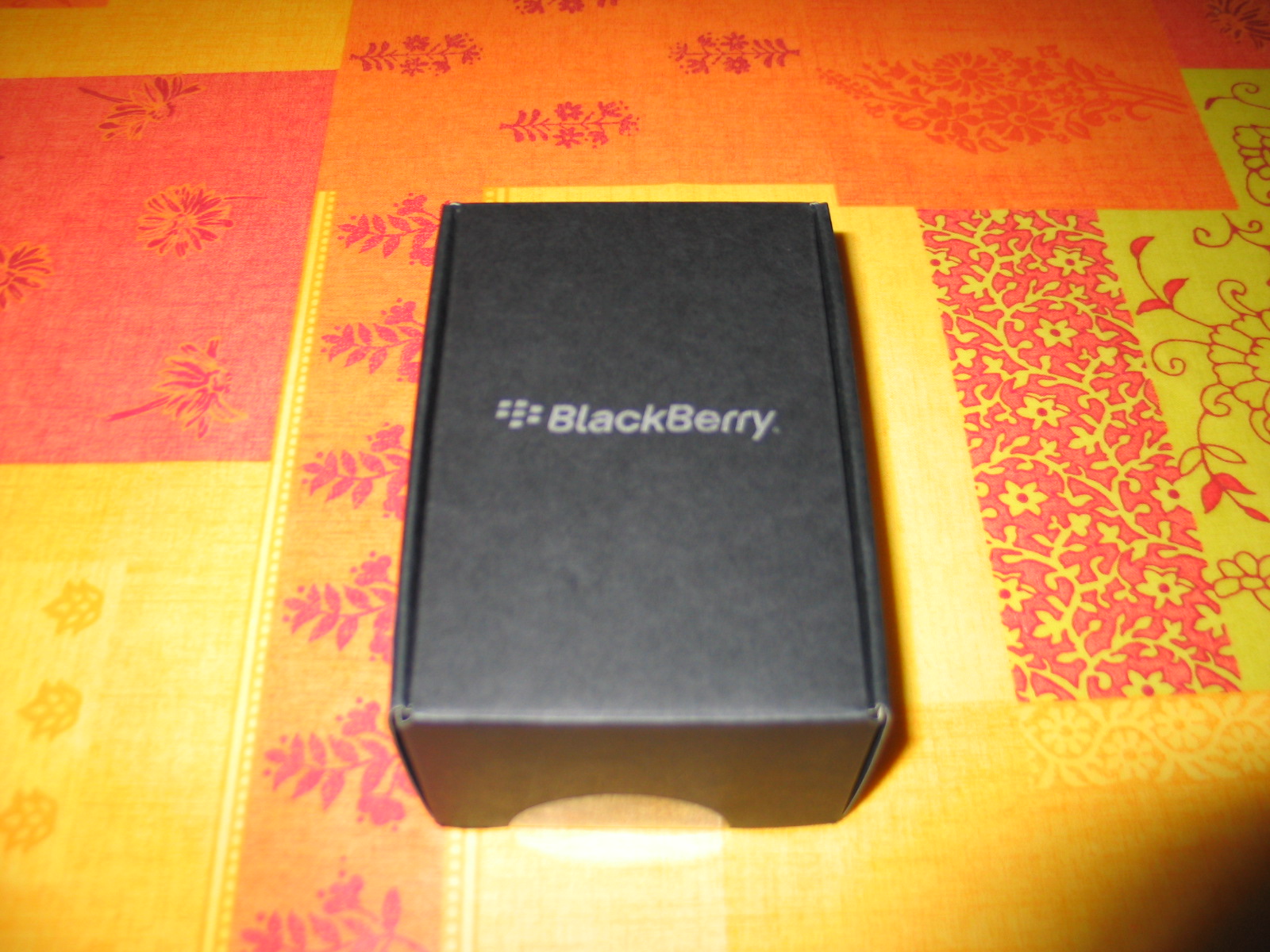

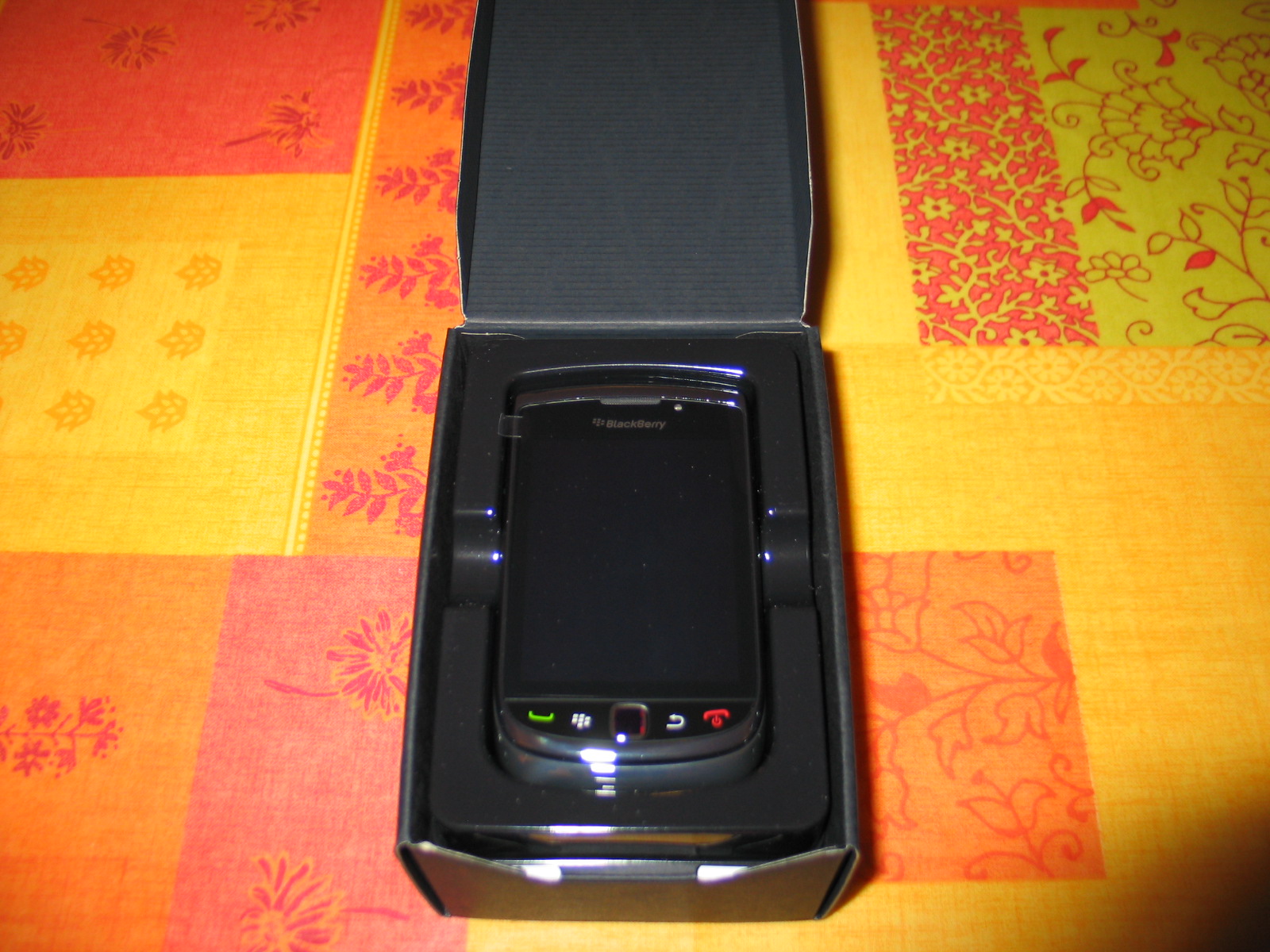

I have received my new BlackBerry before the Christmas 2010. The presentation is very sober.
There isn’t surprise ; it’s a correct quality. It’s a professionnal product.



Using BlackBerry with Linux
Debian unstable
I used to work with a Debian distribution, so I choose a Debian and in particular a Sid Debian (or unstable)
Normally, it should be exactly the same proceed with the others distributions.
At first, I need to synchronize my BlackBerry with my Desktop software (address book, calendar, memos, tasks…).
I use Evolution. I want to be able to list, load and remove Java applications on my device. I want to be able to
use my device as a network modem.
So, I’m going to test our great tool “Barry” with this new device and most of the new BlackBerry OS.
BlackBerry tools
Barry is an Open Source application that will provide synchronization, backup, restore and program management
for BlackBerry devices. Barry is primarily developed on Linux, but is intended as a cross platform library and
application set, targeting Linux, BSD, 32/64bit, and big/little endian systems.
With the last release, it is possible to :
- charge your Blackberry’s battery from your USB port
- retrieve Address Book, Email, Calendar, Service Book, Memos, Tasks, PIN Messages, Saved Email, and Folders
- export Address Book contacts in text, vCard or LDAP LDIF format
- make full data backups and restores of your device using a GUI
- synchronize contacts, calendar, memos and tasks items using the OpenSync framework
- use the Blackberry as a modem
- read the saved data
At first, we have to build the project :
[root@Dahlia /root]$ cd /usr/local/src/ [root@Dahlia src]$ mkdir blackberry [root@Dahlia src]$ cd blackberry [root@Dahlia blackberry]$ git clone git://repo.or.cz/barry.git barry [root@Dahlia blackberry]$ cd barry [root@Dahlia barry]$ ./buildgen.sh [root@Dahlia barry]$ ./configure --enable-gui [root@Dahlia barry]$ make [root@Dahlia barry]$ make install
To be able to use barry with a user account, you have to edit the udev configuration to get the good permissions when you plug your Blackberry.
[root@Dahlia /root]$ cd /usr/local/src/blackberry/barry [root@Dahlia barry]$ cp udev/10-blackberry.rules udev/99-blackberry-perms.rules /etc/udev/rules.d/ [root@Dahlia barry]$ /etc/init.d/udev restart
After barry installation, you can use the barry tools :
[root@Dahlia /root]$ bidentify 12345678, RIM BlackBerry Device [root@Dahlia /root]$ btool -t Blackberry devices found: Device ID: 0x25a6360. PIN: 12345678, Description: RIM BlackBerry Device Using device (PIN): 12345678 Database database: Database: 0x0 'PasswordKeeper Options' (records: 1) Database: 0x1 'PasswordKeeper' (records: 1) Database: 0x2 'VideoRecorder Options' (records: 1) Database: 0x3 'Camera Options' (records: 1) Database: 0x4 'Alarm Options' (records: 1) Database: 0x5 'Enhanced Gmail Plug-in' (records: 1) Database: 0x6 'Clock Options' (records: 1) Database: 0x7 'Alarms' (records: 0) Database: 0x8 'Tasks' (records: 3) Database: 0x9 'Browser Push Options' (records: 1) Database: 0xa 'Attachment Data' (records: 12) Database: 0xb 'Attachment Options' (records: 1) Database: 0xc 'MMS Messages' (records: 5) Database: 0xd 'MMS Options' (records: 1) Database: 0xe 'Tasks Options' (records: 1) Database: 0xf 'Secure Email Decision Maker' (records: 1) Database: 0x10 'Purged Messages' (records: 287) Database: 0x11 'Folders' (records: 6) Database: 0x12 'Folder Id' (records: 1) Database: 0x13 'SMS Messages' (records: 191) Database: 0x14 'Saved Email Messages' (records: 0) Database: 0x15 'PIN Messages' (records: 7) Database: 0x16 'Messages' (records: 622) Database: 0x17 'Mailbox Icon Management Options' (records: 1) Database: 0x18 'Phone Call Logs' (records: 56) Database: 0x19 'Phone History' (records: 34) Database: 0x1a 'Searches' (records: 22) Database: 0x1b 'Spell Check Options' (records: 1) Database: 0x1c 'Phone Options' (records: 1) Database: 0x1d 'Text Messages' (records: 31) Database: 0x1e 'Input Learning Data' (records: 49) Database: 0x1f 'WAP Push Messages' (records: 0) Database: 0x20 'Browser Options' (records: 1) Database: 0x21 'Browser Cache' (records: 5) Database: 0x22 'Browser Channels' (records: 0) Database: 0x23 'Browser Messages' (records: 0) Database: 0x24 'Browser Folders' (records: 2) Database: 0x25 'External Bookmarks' (records: 0) Database: 0x26 'Browser Bookmarks' (records: 13) Database: 0x27 'Recipient Cache' (records: 1) Database: 0x28 'Bluetooth Options' (records: 1) Database: 0x29 'Attachment Data - Calendar' (records: 0) Database: 0x2a 'Calendar Options' (records: 1) Database: 0x2b 'Memory Cleaner Options' (records: 1) Database: 0x2c 'Mobile Network Options' (records: 1) Database: 0x2d 'Memos' (records: 5) Database: 0x2e 'Shortcut Settings' (records: 1) Database: 0x2f 'EntryPoint Settings' (records: 86) Database: 0x30 'Theme Settings' (records: 1) Database: 0x31 'Profiles Options' (records: 1) Database: 0x32 'Recent Contacts' (records: 9) Database: 0x33 'Voice Activated Dialing Options' (records: 1) Database: 0x34 'Address Book Options' (records: 1) Database: 0x35 'Sounds' (records: 19) Database: 0x36 'Address Book - Last Used Hints' (records: 1) Database: 0x37 'Categories' (records: 2) Database: 0x38 'Message List Options' (records: 1) Database: 0x39 'MemoPad Options' (records: 1) Database: 0x3a 'Input Method Switcher Option' (records: 1) Database: 0x3b 'WLAN Profiles' (records: 6) Database: 0x3c 'Application Permissions' (records: 244) Database: 0x3d 'Default Content Handlers' (records: 0) Database: 0x3e 'Suretype options' (records: 1) Database: 0x3f 'Predictive Multitap options' (records: 1) Database: 0x40 'SpellCheckable options' (records: 1) Database: 0x41 'Content Store' (records: 0) Database: 0x42 'Default Service Selector' (records: 3) Database: 0x43 'Service Book' (records: 17) Database: 0x44 'Code Module Group Properties' (records: 78) Database: 0x45 'Time Zones' (records: 91) Database: 0x46 'Full-predictive options' (records: 1) Database: 0x47 'Input Method Options' (records: 21) Database: 0x48 'Configuration Channel' (records: 5) Database: 0x49 'Random Pool' (records: 1) Database: 0x4a 'Smart Card Options' (records: 1) Database: 0x4b 'Certificate Options' (records: 0) Database: 0x4c 'TLS Options' (records: 1) Database: 0x4d 'Firewall Options' (records: 1) Database: 0x4e 'Key Store Options' (records: 1) Database: 0x4f 'KeyStoreManager' (records: 1) Database: 0x50 'PGP Key Store' (records: 0) Database: 0x51 'Handheld Key Store' (records: 137) Database: 0x52 'Trusted Key Store' (records: 98) Database: 0x53 'AutoText Data Version' (records: 1) Database: 0x54 'AutoText' (records: 356) Database: 0x55 'RMS Databases' (records: 12) Database: 0x56 'Handheld Configuration' (records: 0) Database: 0x57 'Options' (records: 21) Database: 0x58 'Device Options' (records: 0) Database: 0x59 'Policy' (records: 1) Database: 0x5a 'CustomWordsCollection' (records: 840) Database: 0x5b 'Input System Properties' (records: 1) Database: 0x5c 'Location Based Services' (records: 0) Database: 0x5d 'Maps' (records: 3) Database: 0x5e 'Map Global Options' (records: 1) Database: 0x5f 'Map Locations' (records: 1) Database: 0x60 'Map Settings' (records: 1) Database: 0x61 'Diagnostic App Options' (records: 1) Database: 0x62 'File Explorer Options' (records: 1) Database: 0x63 'File Explorer Network Favorites' (records: 0) Database: 0x64 'File Explorer Network History' (records: 0) Database: 0x65 'Messenger Options (WLM)' (records: 1) Database: 0x66 'Messenger Options (AIM)' (records: 1) Database: 0x67 'Messenger Options (GoogleTalk)' (records: 1) Database: 0x68 'SQLite Keys' (records: 1) Database: 0x69 'TCP/IP Options' (records: 1) Database: 0x6a 'Quick Contacts' (records: 0) Database: 0x6b 'Messenger Options (Yahoo!)' (records: 1) Database: 0x6c 'BlackBerry Messenger' (records: 1) Database: 0x6d 'BIS Account Data' (records: 1) Database: 0x6e 'Bloomberg Settings' (records: 6) Database: 0x6f 'BBGroups' (records: 14) Database: 0x70 'DocsToGoCommonPrefs' (records: 1) Database: 0x71 'SlideshowToGoPrefs' (records: 1) Database: 0x72 'WordToGoPrefs' (records: 1) Database: 0x73 'SheetToGoPrefs' (records: 1) Database: 0x74 'Handheld Agent' (records: 629) Database: 0x75 'Address Book' (records: 151) Database: 0x79 'Calendar' (records: 60) Database: 0x7c 'Address Book - All' (records: 151) Database: 0x7d 'PIM Folder List - All' (records: 0) Database: 0x7e 'Secure Credentials - All' (records: 0) Database: 0x7f 'Calendar - All' (records: 69) Database: 0x59 'Browser Bookmarks' (records: 2)
If you use ZSH shell, I have written small scripts for ZSH autocompletion.
[root@Dahlia /root]$ cd /usr/local/src/blackberry/barry [root@Dahlia barry]$ mkdir ~/.zsh/comp.d/ [root@Dahlia barry]$ cp zsh/_bjavaloader zsh/_btool ~/.zsh/comp.d/
and to set ZSH :
[root@Dahlia /root]$ cat ~/.zshenv # ---- language-env DON'T MODIFY THIS LINE! # settings for french speaking users # set LANG export LANG=fr_FR.UTF-8 # ---- language-env end DON'T MODIFY THIS LINE! # Zsh completions export FPATH=$FPATH:$HOME/.zsh/comp.d

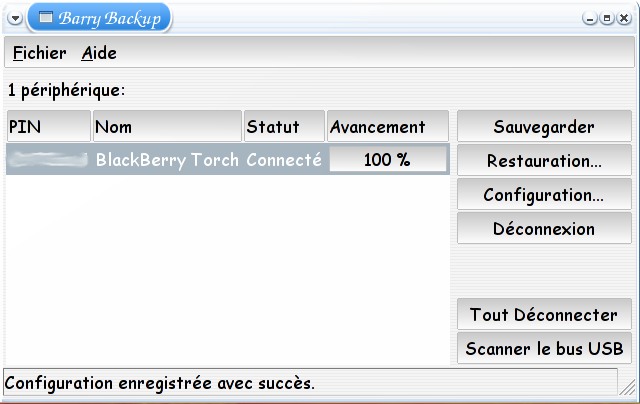

Barry application permits you to make backup and restore.
[root@Dahlia /root]$ barrybackup
BlackBerry synchronization
With the RIM tools, you can only synchronize your device with your computer in using a USB cable. You can’t synchronize over a Bluetooth session.
To sync your Blackberry with Evolution, you can use OpenSync 0.22 release and the command line tool msynctool.
[root@Dahlia /root]$ cd /usr/local/src/blackberry/barry [root@Dahlia barry]$ cd opensync-plugin [root@Dahlia opensync-plugin]$ ./configure [root@Dahlia opensync-plugin]$ make [root@Dahlia opensync-plugin]$ make install
As far as I’m concerned, I’m used to use the 0.4x release :
[root@Dahlia /root]$ cd /usr/local/src/blackberry/barry [root@Dahlia barry]$ cd opensync-plugin-0.4x [root@Dahlia opensync-plugin-0.4x]$ ./configure [root@Dahlia opensync-plugin-0.4x]$ make [root@Dahlia opensync-plugin-0.4x]$ make install
Now, Contacts, Calendar, Memos and Tasks items are currently supported in the Barry Opensync plugin.
To use the plugin opensync. First, check your plugin installation :
[root@Dahlia /root]$ osynctool --listplugins Available plugins: evo2-sync syncml-http-server syncml-http-client syncml-obex-client barry-sync
Now, we can create our group and set the usefull plugin.
[root@Dahlia /root]$ osynctool --addgroup BlackBerry [root@Dahlia /root]$ osynctool --addmember BlackBerry evo2-sync [root@Dahlia /root]$ osynctool --addmember BlackBerry barry-sync
You can check and read the member ID returned by the command.
[root@Dahlia /root]$ osynctool --showgroup BlackBerry Group: BlackBerry Member 1: evo2-sync Member 2: barry-sync
Configure your plugins :
[root@Dahlia /root]$ osynctool --configure BlackBerry 1 <?xml version="1.0"?> <config version="1.0"> <Resources> <Resource> <Enabled>1</Enabled> <Formats> <Format> <Config>VCARD_EXTENSION=Evolution</Config> <Name>vcard30</Name> </Format> <Format> <Config>VCARD_EXTENSION=Evolution</Config> <Name>vcard21</Name> </Format> </Formats> <ObjType>contact</ObjType> <Url>file:///home/nicolas/.evolution/addressbook/local/system</Url> </Resource> <Resource> <Enabled>1</Enabled> <Formats> <Format> <Name>vevent20</Name> </Format> </Formats> <ObjType>event</ObjType> <Url>file:///home/nicolas/.evolution/calendar/local/system</Url> </Resource> <Resource> <Enabled>1</Enabled> <Formats> <Format> <Name>vtodo20</Name> </Format> </Formats> <ObjType>todo</ObjType> <Url>file:///home/nicolas/.evolution/tasks/local/system</Url> </Resource> <Resource> <Enabled>1</Enabled> <Formats> <Format> <Name>vjournal</Name> </Format> </Formats> <ObjType>note</ObjType> <Url>file:///home/nicolas/.evolution/memos/local/system</Url> </Resource> </Resources> </config> [root@Dahlia /root]$ osynctool --configure BlackBerry 2 <?xml version="1.0"?> <config version="1.0"> <AdvancedOptions> <AdvancedOption> <DisplayName>PIN number</DisplayName> <MaxOccurs>2147483647</MaxOccurs> <Max>2147483647</Max> <Name>PinCode</Name> <Type>string</Type> <Value>0x12345678</Value> </AdvancedOption> <AdvancedOption> <DisplayName>Debug mode</DisplayName> <MaxOccurs>2147483647</MaxOccurs> <Max>2147483647</Max> <Name>Debug</Name> <Type>bool</Type> <Value>0</Value> </AdvancedOption> </AdvancedOptions> <Authentication> <Username></Username> <Password></Password> </Authentication> <Resources> <Resource> <Enabled>1</Enabled> <Formats> <Format> <Name>vcard30</Name> </Format> </Formats> <Name>Contacts</Name> <ObjType>contact</ObjType> </Resource> <Resource> <Enabled>1</Enabled> <Formats> <Format> <Name>vevent20</Name> </Format> </Formats> <Name>Event</Name> <ObjType>event</ObjType> </Resource> </Resources> </config> [root@Dahlia /root]$ osynctool --discover BlackBerry 1 [root@Dahlia /root]$ osynctool --discover BlackBerry 2
Now, you are ready to sync your device with Evolution :
[root@Dahlia /root]$ osynctool --sync BlackBerry
BlackBerry Multimedia
This part describres the steps needed to encode an image, video or audio files so as to be able to read with a BlackBerry device.
To convert a video for my BlackBerry device, I have written a little script using ffmpeg.
[root@Dahlia root]$ cat > vid2bb.sh #!/bin/sh FILE=$1 RES=480x360 ffmpeg -y -i "$FILE" \ -f mp4 \ -s $RES \ -acodec libfaac -async 4800 \ -dts_delta_threshold 1 \ -vcodec libxvid \ -aspect 4:3 \ -qscale 10 \ "${FILE%.*}_bb.avi"
BlackBerry Java Loader
This part describes the steps needed to install a Java application on your BlackBerry device.
JavaLoader is provided with the Barry project. JavaLoader features permit you to install/remove applications on your device, list all the installed applications, make screenshot…
[root@Dahlia root]$ bjavaloader -h bjavaloader - Command line USB Blackberry Java Loader Copyright 2008-2009, Nicolas VIVIEN. Copyright 2005-2010, Net Direct Inc. (http://www.netdirect.ca/) Using: Barry library version 0.17 (little endian) -A Save all modules found -a Wipe applications only -i Wipe filesystem only -f Force erase, if module is in use -h This help -s List sibling in module list -p pin PIN of device to talk with If only one device is plugged in, this flag is optional -P pass Simplistic method to specify device password -v Dump protocol data during operation commands dir [-s] Lists modules on the handheld deviceinfo Provides information on the handheld load <.cod file> ... Loads modules onto the handheld save [-A]... Retrieves modules from the handheld and writes to .cod file Note: will overwrite existing files! wipe [-a | -i] Wipes the handheld Use Caution: Wiping filesystem will remove all data such as messages, contacts, etc. Wiping applications will remove all .cod files on the device, including OS .cod files. resettofactory Reset IT policy to factory defaults Use Caution: Resetting IT policy to factory defaults will also perform a filesystem wipe which will remove all data such as messages, contacts, etc. erase [-f] ... Erase module from handheld eventlog Retrieves the handheld event log cleareventlog Clears the handheld event log logstacktraces Dump the stack traces for all threads to the event log screenshot <.bmp file> Make a screenshot of handheld settime [yyyy-mm-dd HH:MM:SS] Sets the time on the handheld to the current time Or the time specified as an argument to settime If given as argument, current system timezone is assumed
By sample, to load a new application :
[root@Dahlia root]$ bjavaloader load HelloWorldDemo.cod
To take a screen capture :
[root@Dahlia root]$ bjavaloader screenshot screen.bmp
Bonjour,
J’ai un Blacberry curve 8520 et j’utilise Ubuntu depuis peu (débutant!!). Je voudrais pouvoir synchroniser mon pda avec mon pc. Mais j’ai quelques “petits soucis”. J’ai essayé de suivre vos explications mais j’ai un message d’erreur (permission non accordée) lorsque je met la ligne de commande ./configure.ac
Merci d’avance de votre aide et bonne année 2011
Bonjour,
C’est “configure” et non “configure.ac”. Ce fichier est généré par “buildgen.sh”.
Pour compiler toutes les applications, on peut faire :
Nicolas
Bonjour,
D’abord merci, de mettre en ligne votre travail.
Moi, c’est un curve 9300 sous ubuntu 10.10, que j’aimerai faire fonctionner (Je suis nul en ligne de commandes)
Je bloque dès le début avec : ./buildgen.sh
qui me retourne : ./buildgen.sh: 150: aclocal: not found
Question où trouver aclocal ? Parce qu’aprés plus rien ne va.
Je n’ai pas du charger un ou des paquets, mais lesquels ??..
Si vous avez une petite idée, je vous remercie par avance.
Bonne journée.
Christian
Bonsoir,
Il vous manque visiblement tous les outils nécessaires pour compiler un package :
Pour compiler les plugins opensync ou encore l’application barrybackup, il faut les paquets contenant les en-êtes de fichiers “xx-dev”.
(Exemple : libtar-dev)
Nicolas
Salut,
Merci pour tout ce boulot qui nous profite bien..
Je suis sous Ubuntu 10.10 et j’essai de le rendre aimable avec un torch 9800
J’ai installé Barry sans trop de problemes, compilé ça a l’air de fonctionner. Pour opensync , apres “un sudo ./configure” je bute la-dessus:
configure: error: Package requirements (libopensync1 glib-2.0) were not met:
No package ‘libopensync1’ found
Consider adjusting the PKG_CONFIG_PATH environment variable if you
installed software in a non-standard prefix.
Alternatively, you may set the environment variables PACKAGE_CFLAGS
and PACKAGE_LIBS to avoid the need to call pkg-config.
See the pkg-config man page for more details.
configure: error: ./configure failed for opensync-plugin-0.4x
si vous pouvez faire qqchse pour moi, je serais ravi et infiniment reconnaissant
Jon
Bonjour,
Vous n’avez visiblement pas installé OpenSync.
Sachez que Barry 0.17 vient de sortir en version stable ; vous pouvez trouver les packages à cette adresse :
http://sourceforge.net/projects/barry/files/barry/barry-0.17.0/
Vous devez alors utiliser les packages OpenSync fournit par Ubuntu ; à savoir la version 0.22.
Si vous souhaitez avoir la future version 0.40 ; il faut alors suivre la procédure d’installation :
http://www.progweb.com/2010/12/installation-dopensync/
Il existe aussi des packages Ubuntu pour cette future version :
http://packages.ubuntu.com/fr/natty/opensync-plugin-syncml
Cordialement,
Nicolas
Bonsoir Nicolas,
chapeau et merci pour votre cordialité active..
Je me suis lancé dans l’installation de la future 0.40 en suivant la procédure d’installation que vous indiquez..
et et et voila, ça bloque à nouveau:
yvalent@yvalentU:/usr/local/src/opensync/evolution/build$ sudo cmake -DCMAKE_INSTALL_PREFIX=”/usr/local” /usr/local/src/opensync/evolution
— checking for one of the modules ‘evolution-data-server-1.2’
— found evolution-data-server-1.2, version 2.30.3
— checking for one of the modules ‘libebook-1.2’
— checking for one of the modules ‘libecal-1.2’
— checking for one of the modules ‘libedata-book-1.2’
— checking for one of the modules ‘libedata-cal-1.2’
— checking for one of the modules ‘libedataserver-1.2’
— checking for one of the modules ‘evolution-data-server-1.0’
— checking for one of the modules ‘libebook-1.0’
— checking for one of the modules ‘libecal-1.0’
— checking for one of the modules ‘libedata-book-1.0’
— checking for one of the modules ‘libedata-cal-1.0’
— checking for one of the modules ‘libedataserver-1.0’
CMake Error at cmake/modules/FindEPackage.cmake:166 (MESSAGE):
Evolution Data Server not found.
Call Stack (most recent call first):
CMakeLists.txt:10 (FIND_PACKAGE)
— Configuring incomplete, errors occurred!
je pense avoir une version de Evolution-data-server plus récente que celle recherchée (Ubuntu 10.10) (?)
et la suite de la procédure m’inquiète un peu car je suis en I386 et non en amd64.
Que dois-je faire?
Merci encore,
Cordialement,
Jon
Salut Nicolas,
j’ai réussi à avancer depuis hier, mais pour mieux me bloquer…
voilà ce que j’obtiens après avoir entrer le code suivant:
yvalent@yvalentU:/usr/local/src/opensync/opensync$
yvalent@yvalentU:/usr/local/src/opensync/opensync$ sudo debian/rules binary
C’est la fin de la page:
Bonsoir,
Tu essaies de générer les packages OpenSync. Je dirai qu’il te manque ce qui se rapport à Python.
Dans le fichier opensync/debian/control ; supprime la définition du package “python-opensync”.
Cordialement,
Nicolas
Bonsoir,
Je pense que ton problème est dû au fait que ton package evolution-edata-server et libedataserver ne sont pas dans la même version…
Mes versions (sur une debian unstable) :
evolution-data-server-dev – 2.32.2-1
libedataserver1.2-dev – 2.32.2-1
Cordialement,
Nicolas
Bonsoir Nicolas, suite:
Je suis retourné sur la page d’instructions pour le torch
Et voila ce que ça donne :
Je suis réellement paumé.
Merci de votre aide
Jon
Bonsoir,
Il n’y a donc aucun problème ; tout s’est bien passé.
Ton installation a été faite dans les dossiers /usr/local/xxx
Tu as donc visiblement compiler OpenSync toi-même ; fais attention à ne pas avoir deux versions d’OpenSync (la version packagée + une version compilée).
Nicolas
Bonsoir Nicolas,
Merci pour toutes tes bonnes remarques. je crois en effet que ça se croise pas mal. j’ai deux id membres pour evo2-sync et je n’ai pas les plugins suivant
syncml-http-server
syncml-http-client
syncml-obex-client
et les 2 autres plugins ne se configurent pas…
Je pense qu’il faut que je nettoie tout ça et que je recommence…non?
j’ai déja supprimé l’Opensync fourni par le package, c’est le 0.22
En tout cas je te remercie sincèrement pour ton aide.
j’ai quand même hâte que ça marche….patience et endurance!
Jon
